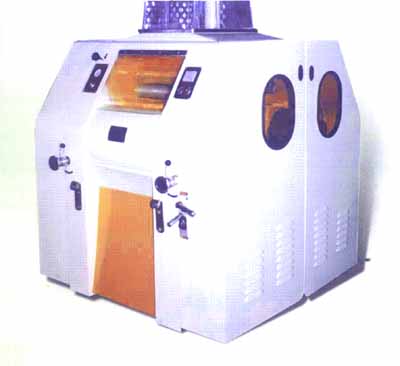

FMFQ Series Wheat Grinder
FMFQ series wheat grinder is one of medium-sized grain grinders we developed lately. It can be widely used in various raw material. Except wheat, it can also be used in maize mill, rice mill etc.
1. Tranmission Belt
With double arc flank profile belt, this series wheat grinder have the advantage of balance in transmission, low noise in working, without oil dirty and equipped with unique roll bearings.
2. Orientation and Stableness
The FMFQ wheat grinder has excellent performance in orientation and stableness in working, compared to normal grain grinders.
3. Sensititve & Exact Clutch
When change the clutch gate, the FMFQ wheat grinder shows sensitive and exact reaction.
4. Double Control
The series grain grinder can be controlled both by hand or pneumatic, convenient in operation.
5. Induced Receiver
Induced receiver for raw material, the resistance is smaller and discharge of material is more convenient.
6. Compact Design
Motor inside, compact structure, the FMFQ series wheat grinder is completely closed in whole, thus the operation is very safe and reliable.
Model |
FMFQ-4×2 |
FMFQ-5×2 |
FMFQ-6×2 |
roller Ø ×length (mm) |
Ø250×400 |
Ø250×500 |
Ø250×600 |
rmp of fast roller |
550~650 (tooth roller) 450 (smooth roller) |
||
rmp of slow roller |
2.5-1.25:1 |
||
material absorption tube Ø |
Ø 60- Ø120 |
||
equipped power (kw) |
4-11 |
4-15 |
5.5-18.5 |
overall dimension (mm) L×W×H |
1285×1500×1810 |
1385×1500×1810 |
1485×1500×1810 |
Description for wheat grinder mill:
The FMFQ series wheat grinder is one of mulriple type oblique pneumatic flour grinding machines. It has similar working theory as the MDDK flour mills. The rollers are oblique, featured adjustment of roll clearence and transmission etc. structure.
If used in maize mill, the maize needs to be dehusked and separated the embryo after cleaning.
